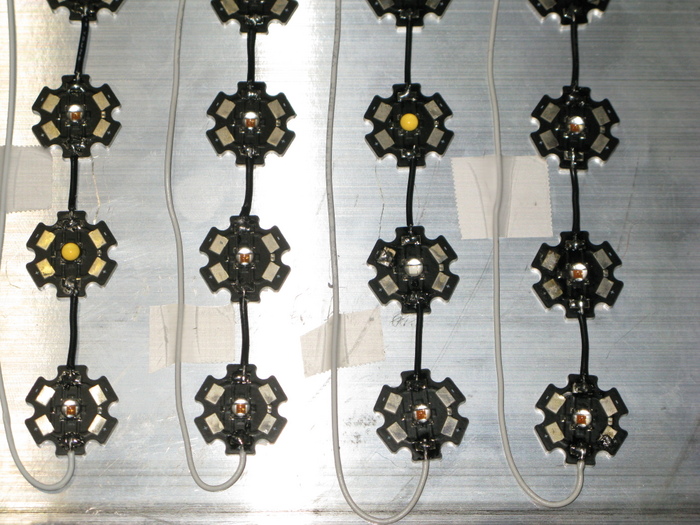

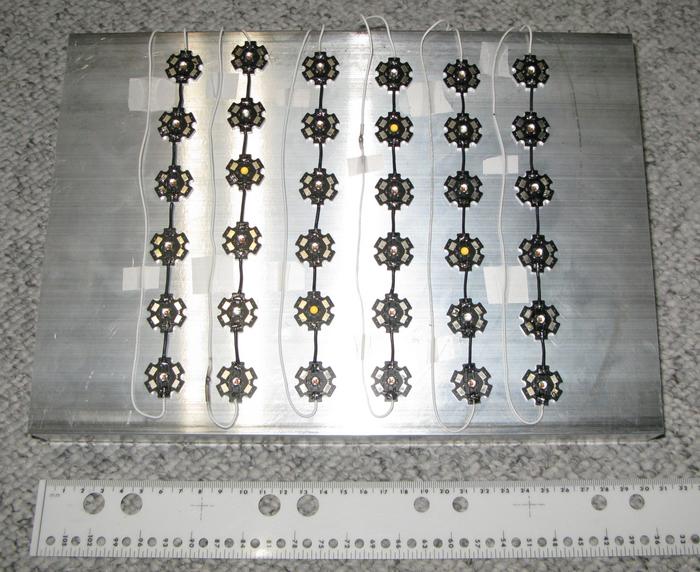

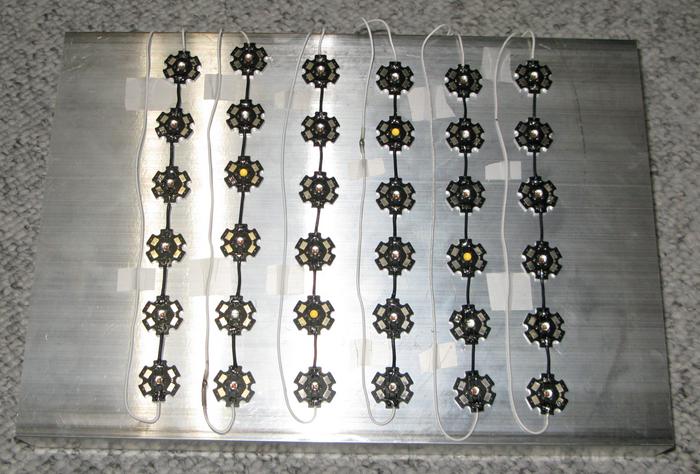

LED arrangement
180 Watt
28 Red
4 Blue
4 White
Vf If mW
LZ1-10R205 Deep Red 660 nm 2.8 1000 525
LZ1-10DB05 Dental Blue 460 nm 3.6 1000 900 80deg
LZ1-10WW05 Warm White

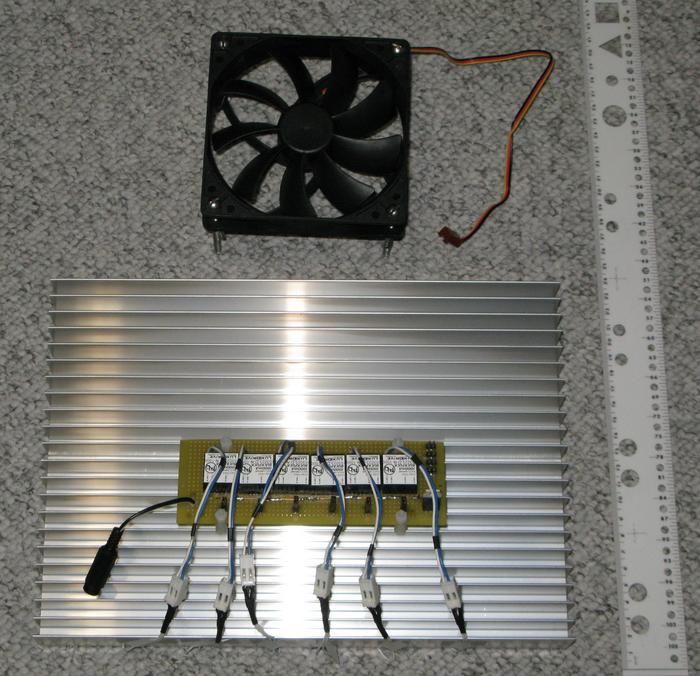

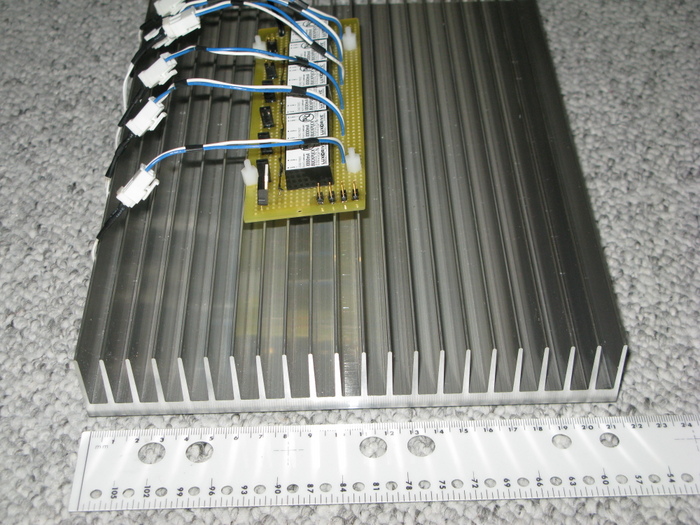

12" LENGTH 8.5" WIDE .300" BASE 1" FIN HEIGHT .400 FIN SPACING CENTER TO CENTER 5.117 POUNDS PER FOOT 22 TOTAL FINS
