prototype 7c<br>
<img width=90% src="prototype7c.png">
<br>

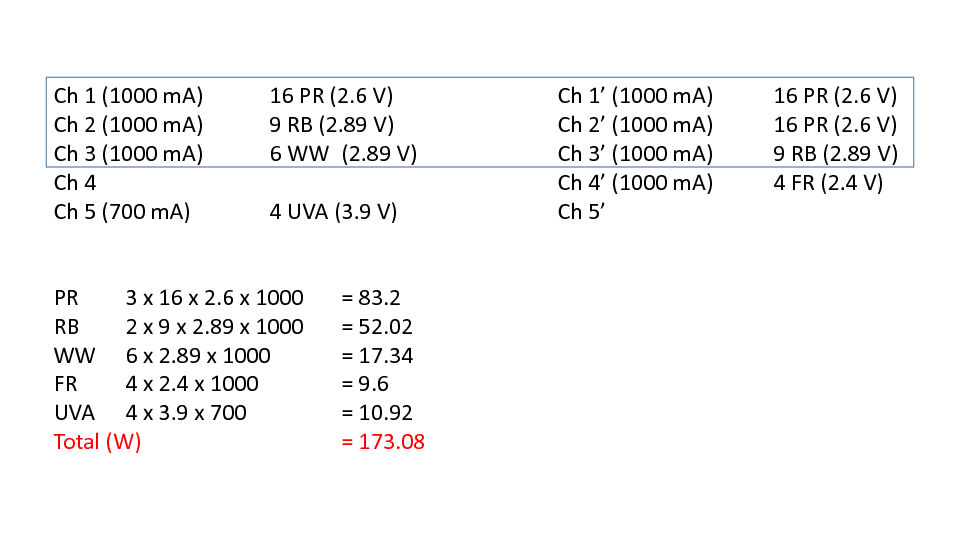

<img width=90% src="Grow-7c.png">
<table>
<tr>
<td>Ch1 (1000mA)</td>
<td>16 PR (2.6V)</td>
<td>Ch1' (1000mA)</td>
<td>16 PR (2.6V)</td>
</tr>

<tr>
<td>Ch2 (1000mA)</td>
<td>9 RB (2.89V)</td>
<td>Ch2' (1000mA)</td>
<td>9 RB (2.89V)</td>
</tr>

<tr>
<td>Ch3 (1000mA)</td>
<td>6 WW (2.89V)</td>
<td>Ch3' (1000mA)</td>
<td>16 PR (2.6V)</td>
</tr>

<tr>
<td>Ch4</td>
<td></td>
<td>Ch4' (1000mA)</td>
<td>4 FR (2.4V)</td>
</tr>

<tr>
<td>Ch5 (700mA)</td>
<td>4 UV (3.9V</td>
<td>Ch5'</td>
<td></td>
</tr>

</table>

<pre>
PR   3 x 16 x 2.6  x 1000   =  83.3
RB   2 x  9 x 2.89 x 1000   =  52.02
WW        6 x 2.89 x 1000   =  17.34
FR        4 x 2.4  x 1000   =   9.6
UVA       4 x 3.9  x 700    =  10.92

Total (W)                   = 173.08
</pre>
<hr>

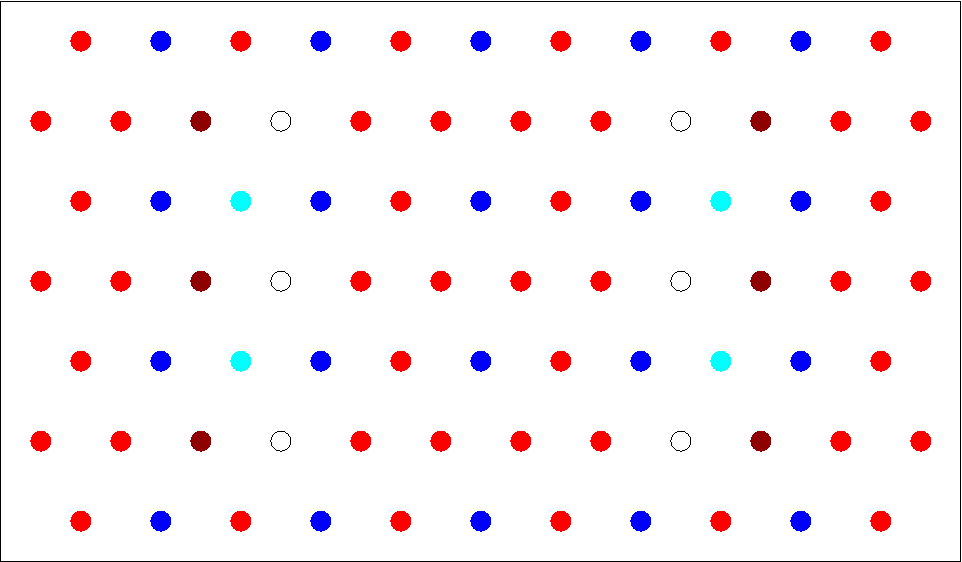

prototype 7a<br>
<img width=90% src="prototype7a.png">
<p>

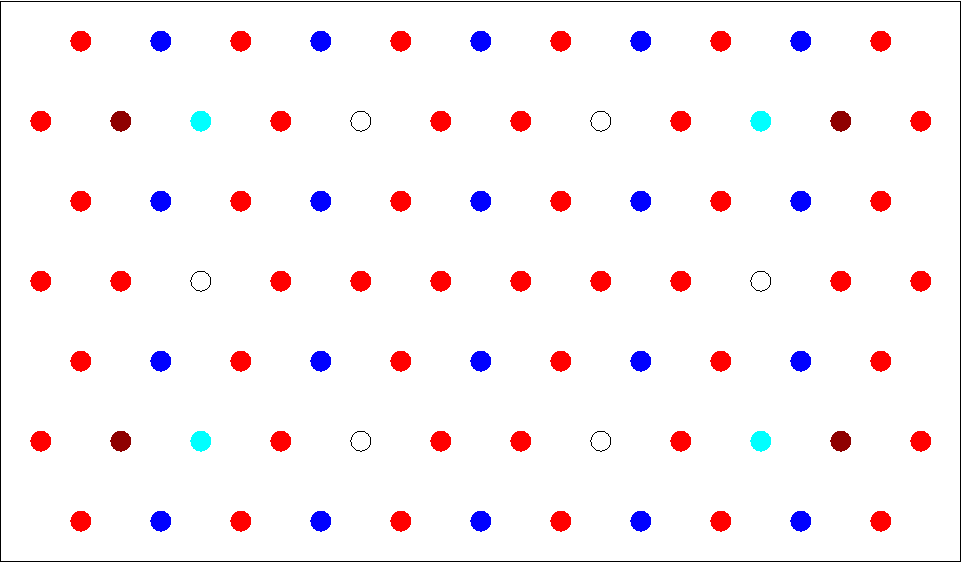

prototype 7b<br>
<img width=90% src="prototype7b.png">
